AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P
AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P

Flexible design  |  Efficient conversion  |  Grid friendly


Flexible design


◆ Small size, light weight, support  manual installation, reduce user  installation and maintenance cost

◆ Multi-communication interface:  RS485, GPRS(optional),  Wifi (optional)

◆ DC breaker, easy to maintain and  safe to use

◆ Convection without fan Digital DSP control technology

Efficient conversion


◆ Transformerless,max.  efficiency is up to 98.1%

◆ Euro. efficiency is up to  97.6%

◆ Total current THD <2%



Grid friendly


◆ Active and passive  anti-islanding protection

◆ Continuously adjustable  active power (0-100%)  function





Excellent qualities


◆ CQC Gold Sun Certification

◆ TUV Certification

◆ SAA Certification

◆ CE Certification



AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P
AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P
Model NameAEP-3KS48PAEP-3K6S48PAEP-4KS48PAEP-4K6S48PAEP-5KS48PAEP-6KS48P
Battery input data
Battery TypeLithium or lead acid battery
Rated battery voltage(V)48
Maximum charging voltage(V)≤60 (Configurable)
Maximum charge/discharge current(A)7590100110120120
PV input data
Maximum DC input power(kw)3.94.75.266.57.5
Maximum DC input voltage(V)500
MPPT Operating voltage range(V)150~450
Starting voltage(V)125
Maximum input current(A)1818/1818/1818/1818/1818/18
MPPT number122222
AC output parameters (On-Grid)
Maximum output apparent power (KW)330039604400500055006000

Rated output voltage(V)230
Rated output frequency(Hz)50/60Hz
Max output current(A)151820222527

Output power factor~1 (-0.8 leading~+0.8 lagging)
AC output parameters(Off-Grid)
Rated output apparent power(VA)300036004000460050006000

Maximum output apparent power(VA)6000,15sec7200,15sec8000,15sec9200,15sec10000,15sec10000,15sec

Rated output voltage(V)230(±2%)
Rated output frequency(Hz)50/60(±0.2%)
Max output current(A)141618212327

Efficiency
Max efficiency(PV)97.6%
Max efficiency(cell)94.5%
Europe efficiency97%
Protection
PV input reverse polarity protectionYes
PV insulation resistance detectionYes
Residual current detectionYes
Output over current protectionYes
Output short circuit protectionYes
Output over voltage protectionYes
Basic data
Operation temperature (°C)-25~60
Storage temperature (°C)-30~65
Relative humidity0~95%
Working altitude (m)≤4000
CoolingAir cooling
Noise (db)<55
Weight (Kg)20
Size (width x height x depth) (mm）427*554*198
Protection classIP66
TopologyHF isolation (Battery side)


AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P
AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P

Video

Product Features

Aluminum Shell

The aluminum shell is formed by stamping, ensuring excellent waterproof and corrosion resistance performance.







Special Protection For PCB.png

Super Overload Capability

Maximum support over 1.3 times overload, suitable for double- sided PV module.

Two-sided solar panel can generate power on both sides.

Rear side provides 25% more power than rated power.

Double-sided panels increase system power generation and require more redundancy in inverter.

Special Protection For PCB

Aotai 105um thickness
copper layer on PCB printed
board and other top-level
configuration (Usually 75um
in the industry)



Case Study

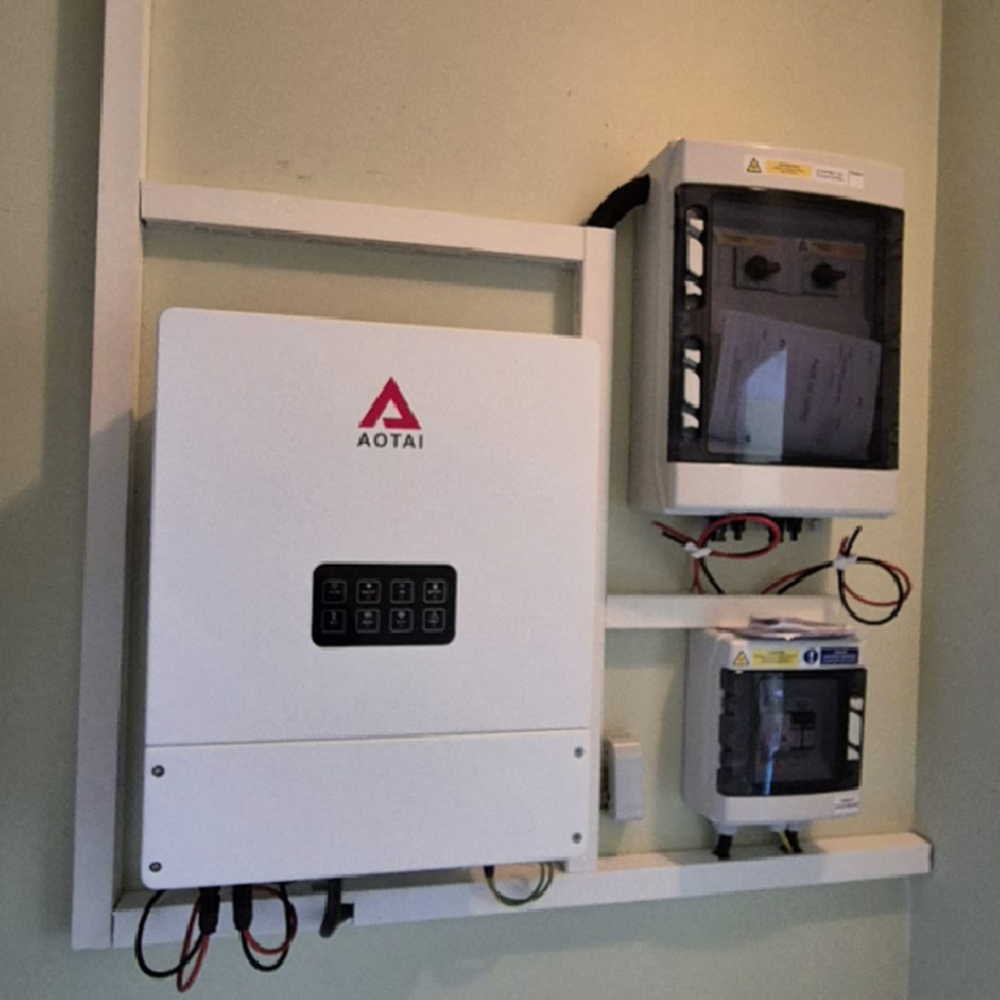

  • France

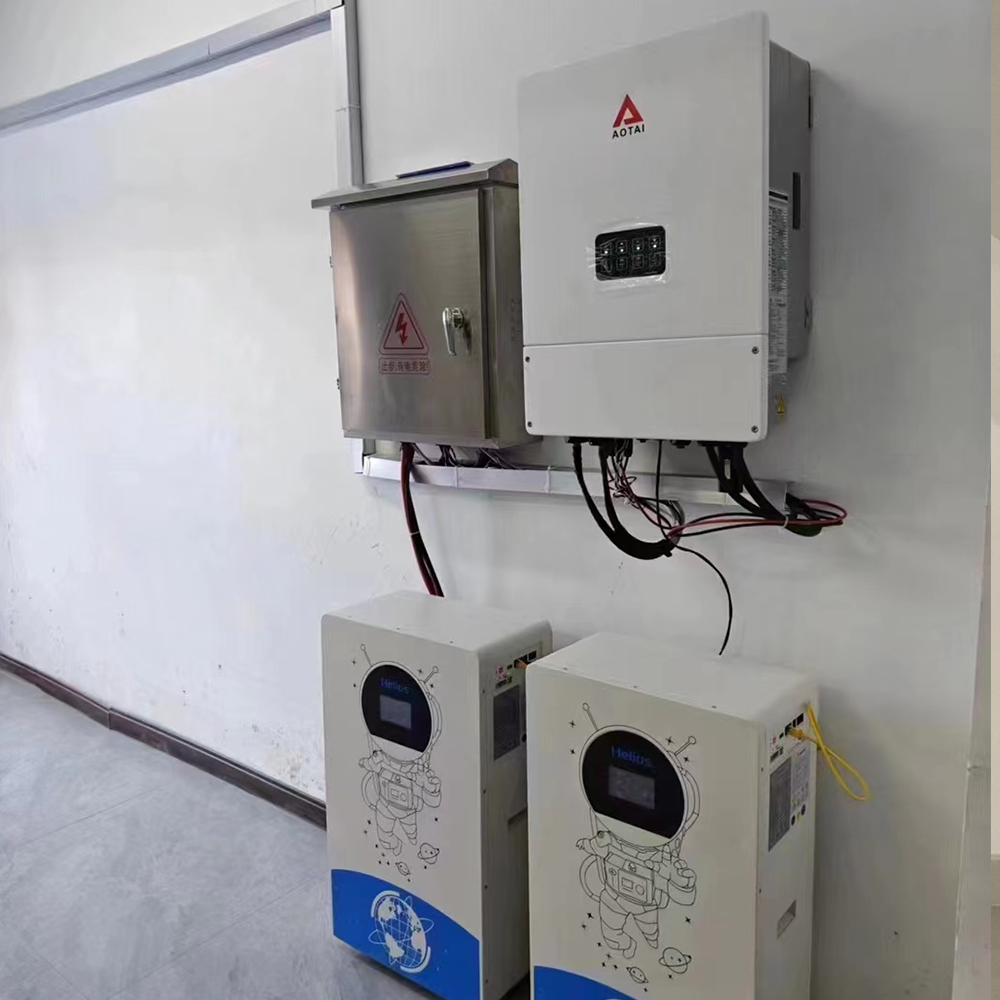

  • France

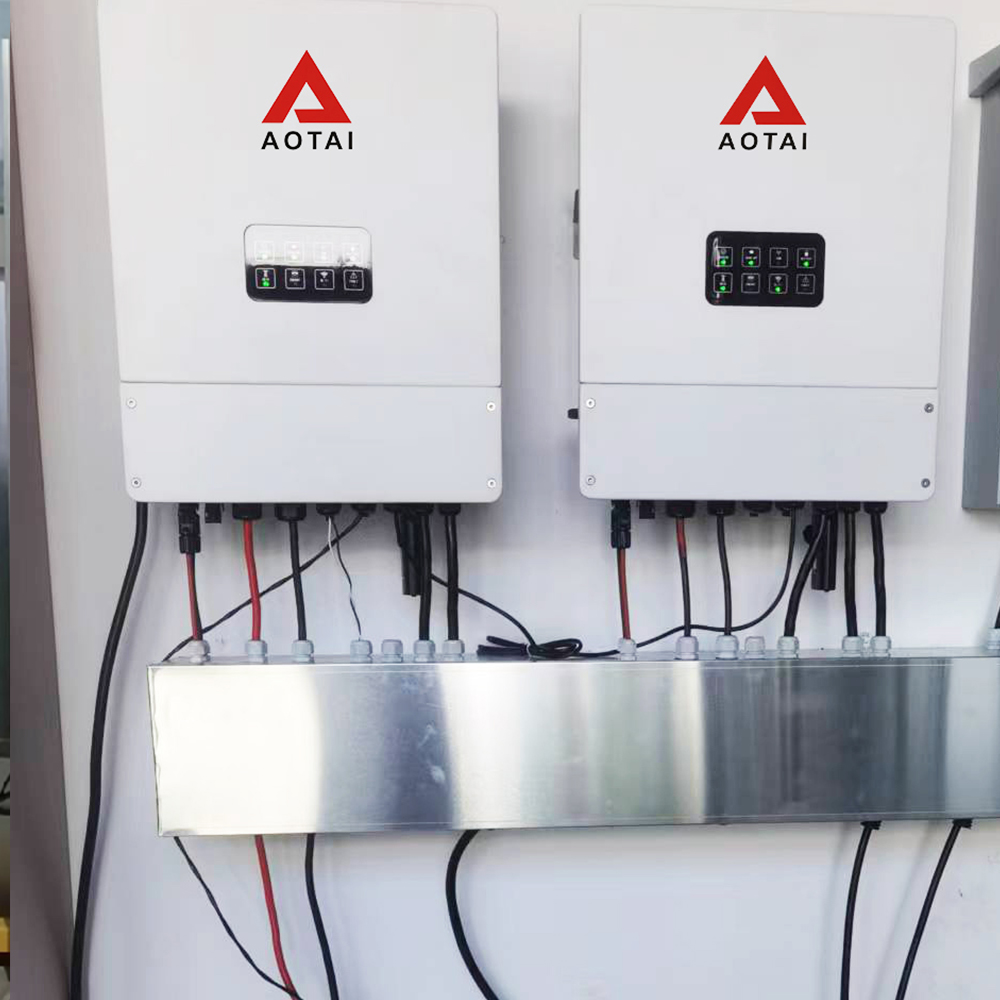

  • china
