ASP-6/8/10/12KTLC
Overview
Specs
Download & Support
ASP-6/8/10/12KTLC
ASP-6/8/10/12KTLC

Flexible design  |  Efficient conversion  |  Grid friendly


Flexible design



◆ Multi-communication interface:

◆ RS485,GPRS(optional),Wifi (optional)

◆ DC breaker,easy to maintain and safe to use

◆ Digital DSP control technology


Efficient conversion


◆ Transformerless,max.efficiency is up to 98.7%;Euro.efficiency is up to 98.2%

◆ Total current THD<2%

◆ Three-level SVPWM control technology,increase DC voltage utilization




Grid friendly


◆ Adjustable reactive power,power factor from 0.8leading to 0.8 lagging

◆ Active and passive anti-islanding protection





Excellent qualities


◆ CQC Gold Sun Certification,TUV Certification,SAA

◆ Certification,CE Certification


ASP-6/8/10/12KTLC
ASP-6/8/10/12KTLC
Model Name6KTLC8KTLC10KTLC12KTLC
Input
Max.DC input power7800W10400W13000W15600W
Max.DC input voltage1100V
Max.DC input current18/18A
MPPT voltage range180-1000V
Recommended MPP operating voltage650V
No.of MPPT2
Max.no.of strings per MPPT1
Output
Rated output power6000W8000W10000W12000W
Max.output power6.6KVA8.8KVA11KVA13.2KVA
Max.output current10A13.3A16.7A20A
Rated grid voltage400V
Grid voltage range310~480Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD<2%(Under the rated power)
Power factor>0.99(Under the rated power)/Adjustable range:0.8 leading~0.8 lagging
DC current injection<0.5%(Under the rated power)
System data
Max.efficiency98.5%98.5%98.6%98.7%
Euro.efficiency97.9%98%98.2%98.1%
Humidity range0-100%non-condensing
Cooling typentelligent forced air cooling
Temperature range-25~+60 C
Power consumption at night<1W
Max.working altitude4000m
DisplayLED/LCD/(optional)
Communication interfaceWifi/RS485/GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchOptional
Mechanical data
Dimensions (WxHxD)427*450*204mm
Weight15Kg
Protection classIP66
Standard
Grid-connected standardNB/T 32004-2018;IEC61727
Safety standardNB/T 32004-2018;IEC 62109-1/2
Electromagnetic compatibilityIEC61000-6-2/4


ASP-6/8/10/12KTLC
ASP-6/8/10/12KTLC

Video

Product Features

Aluminum Shell

The aluminum shell is formed by stamping, ensuring excellent waterproof and corrosion resistance performance.







Special Protection For PCB.png

Super Overload Capability

Maximum support over 1.3 times overload, suitable for double- sided PV module.

Two-sided solar panel can generate power on both sides.

Rear side provides 25% more power than rated power.

Double-sided panels increase system power generation and require more redundancy in inverter.

Special Protection For PCB

Aotai 105um thickness
copper layer on PCB printed
board and other top-level
configuration (Usually 75um
in the industry)



Case Study

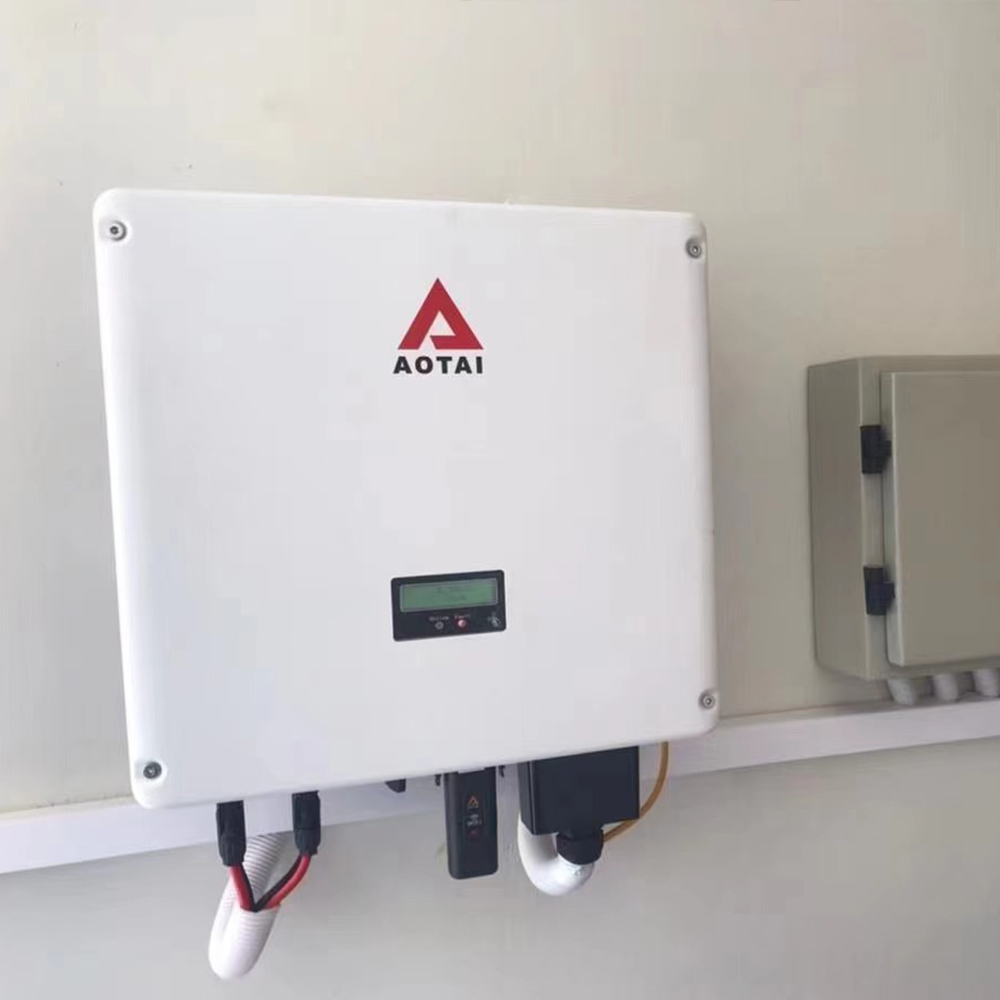

  • Pakistan

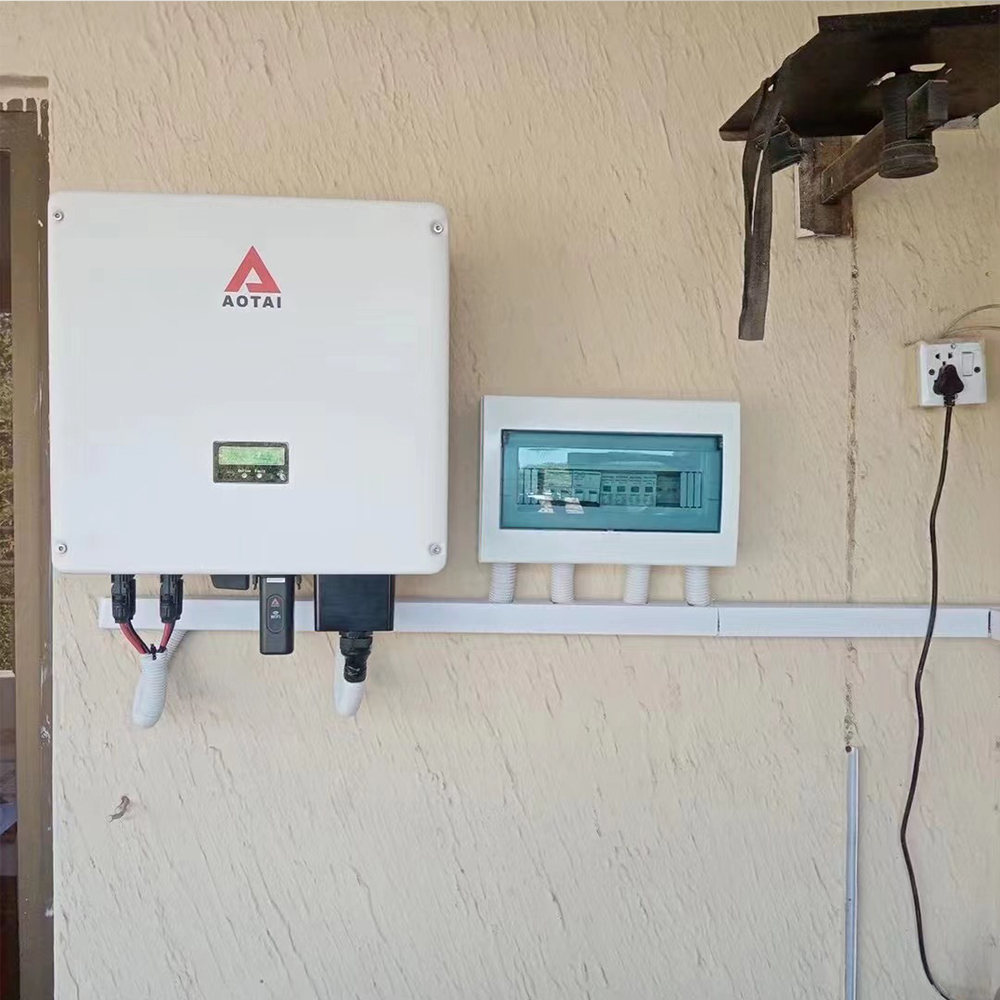

  • Pakistan

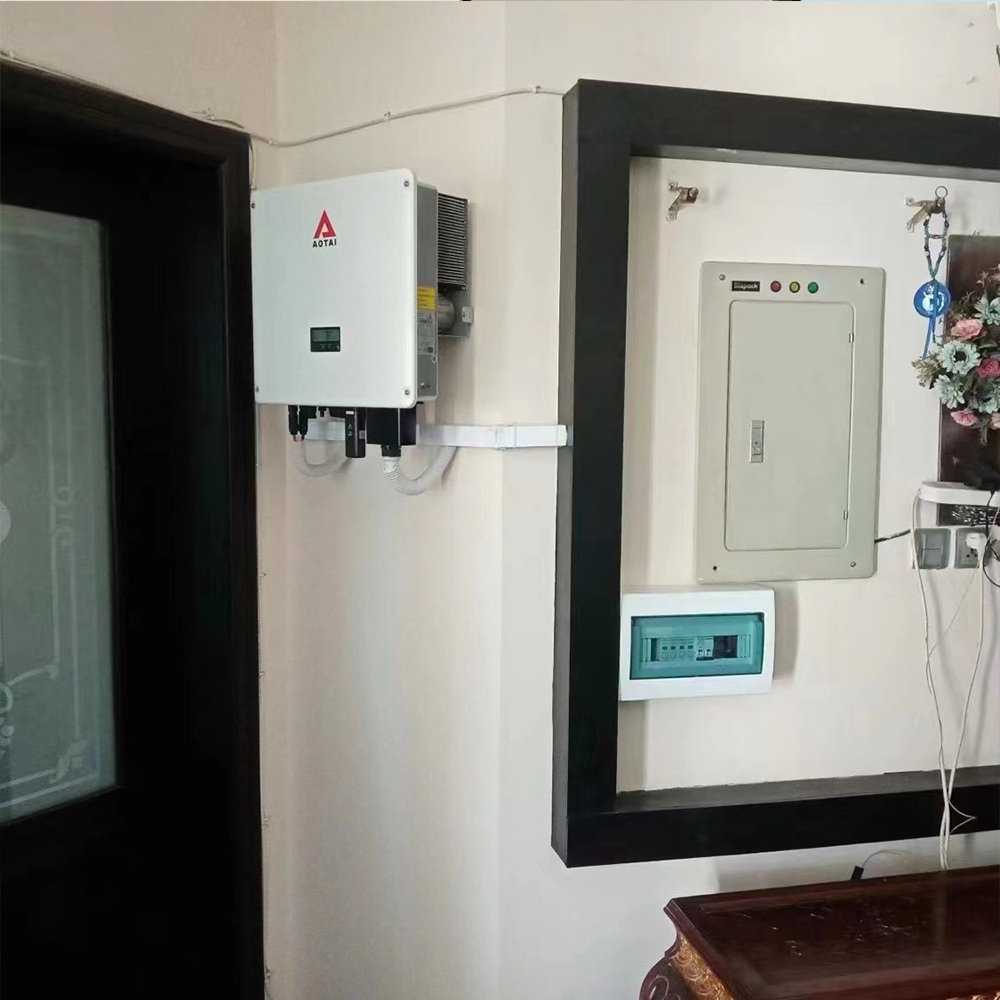

  • Pakistan

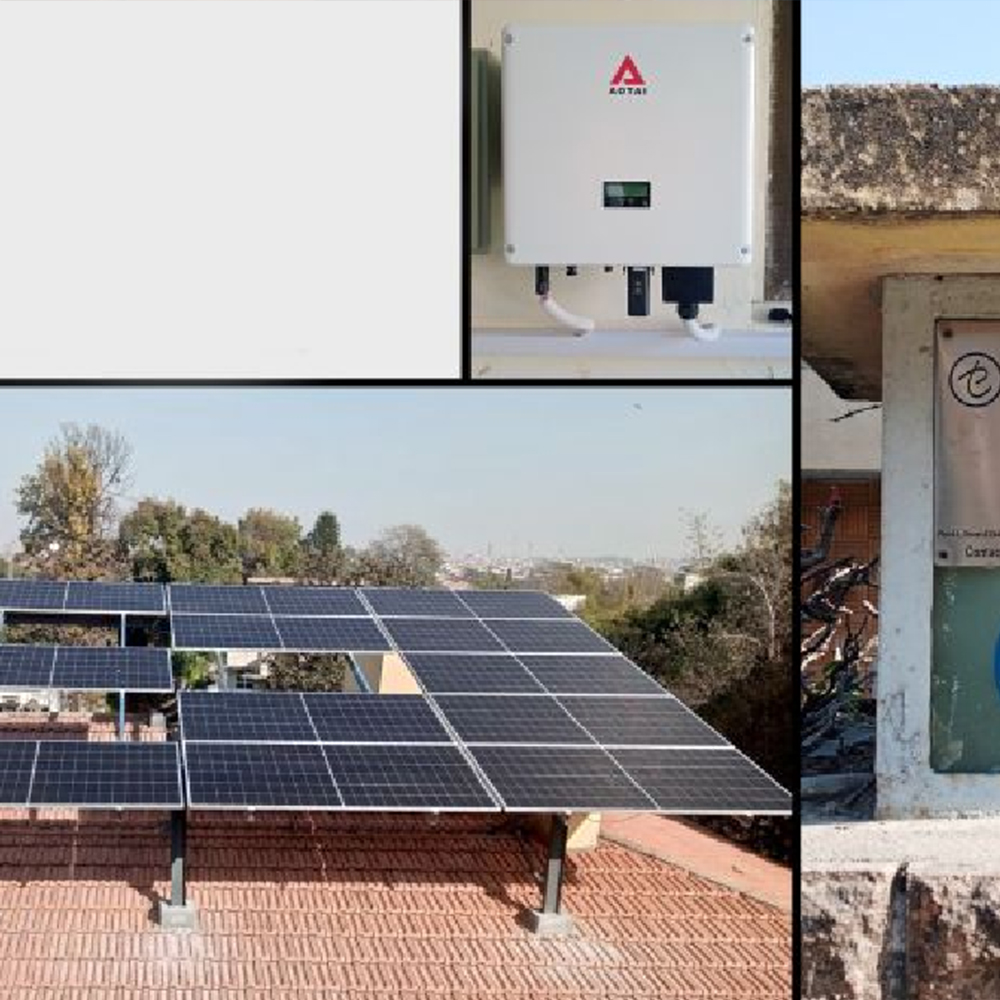

  • Pakistan
