ASP-100/125/136K-HV
Overview
Specs
Download & Support

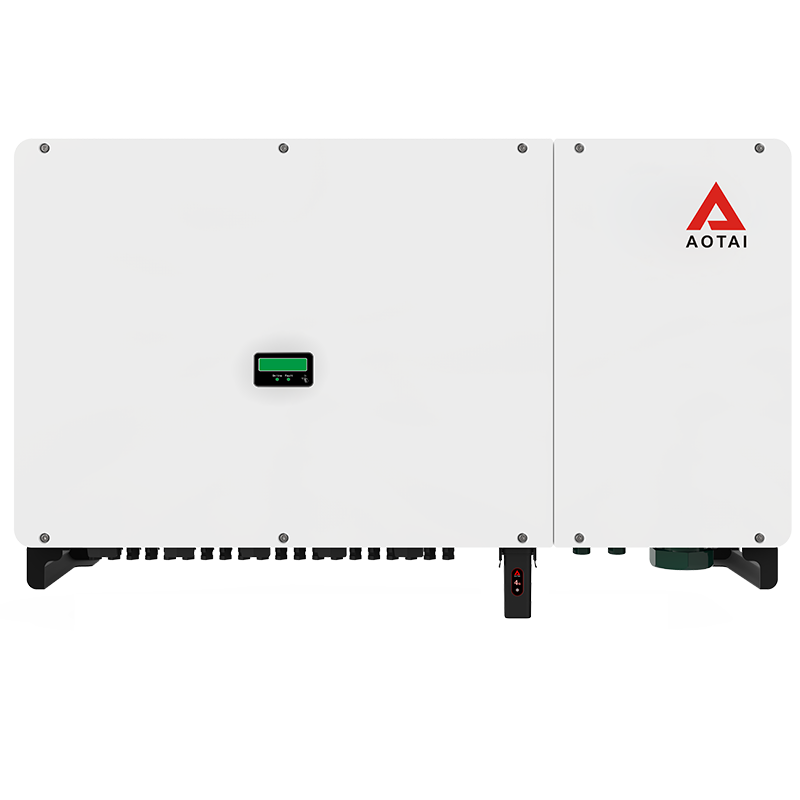

ASP-100/125/136K-HV
ASP-100/125/136K-HV

Flexible design  |  Efficient conversion  |  Grid friendly


Flexible design


◆ Multi-communication interface: RS485, GPRS(optional), Wifi(optional) DC breaker, easy to maintain and safe to use

◆ Integrated functions of combiner box& DC lightning protection, reduce system cost for users


Efficient conversion


◆ Transformerless,max. efficiency is up to 99.02%;

◆ Euro. efficiency is up to 98.51%

◆ Total current THD <3%

◆ Three-level SVPWM control technology, increase DC voltage utilization




Grid friendly


◆ LVRT HVRT function

◆ Adjustable reactive power, power factor from 0.8 leading to 0.8 lagging

◆ Active and passive anti-islanding protection

◆ Continuously adjustable active power (0-100%) function





Excellent qualities


◆ CQC Gold Sun Certification, TUV Certification

◆ SAA Certification, CE Certification


ASP-100/125/136K-HV
ASP-100/125/136K-HV
Model Name100K-HV125K-HV136K-HV
Input
Max.DC input power150KW187.5KW204KW
Max.DC input voltage1100V
Max.DC input current30AX10
MPPT voltage range200~1000V
Recommended MPP operating voltage720V
No.of MPPT10
Max.no.of strings per MPPT2
Output
Rated output power100KW125KW136KW
Max.output power110KVA137.5KVA149.5KVA
Max.output current127A158.8A172.6A
Rated grid voltage500V
Grid voltage range422-550Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD<2%(Under the rated power)
Power factor>0.99(Under the rated power)/Adjustable range:0.8 leading~0.8 lagging
DC current injection<0.5%(Under the rated power)
System data
Max.efficiency98.9%98.9%98.9%
Euro.efficiency98.30%98.40%98.40%
Humidity range0-100%non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-25~+60 C
Power consumption at night<1W
Max.working altitude4000m
DisplayLED/LCD/(optional)
Communication interfaceRS485/Wifi/GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)1050x620x333mm
Weight85kg
Protection classIP66
Standard
Grid-connected standardNB/T 32004-2018;IEC61727
Safety standardNB/T 32004-2018;IEC 62109-1/2
Electromagnetic compatibilityIEC61000-6-2/4


ASP-100/125/136K-HV
ASP-100/125/136K-HV

Video

Product Features

Aluminum Shell

The aluminum shell is formed by stamping, ensuring excellent waterproof and corrosion resistance performance.







Special Protection For PCB.png

Super Overload Capability

Maximum support over 1.3 times overload, suitable for double- sided PV module.

Two-sided solar panel can generate power on both sides.

Rear side provides 25% more power than rated power.

Double-sided panels increase system power generation and require more redundancy in inverter.

Special Protection For PCB

Aotai 105um thickness
copper layer on PCB printed
board and other top-level
configuration (Usually 75um
in the industry)



Case Study

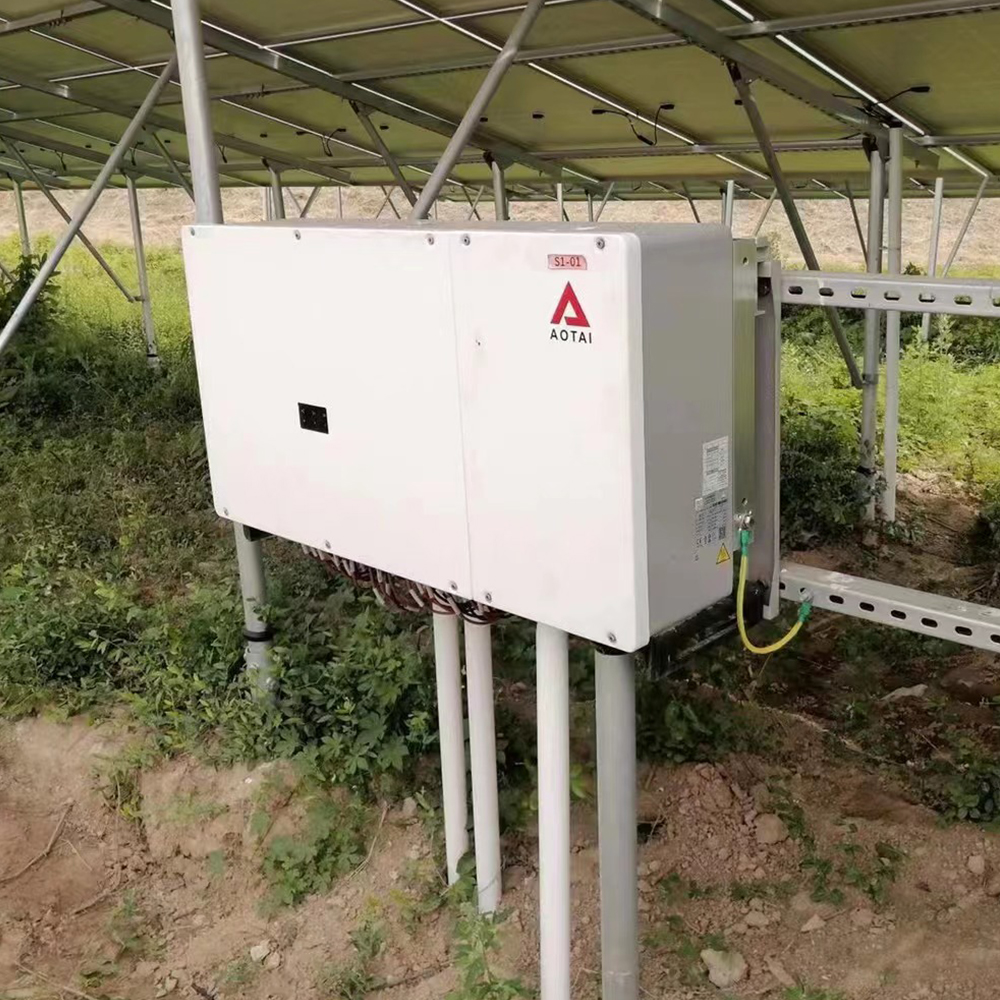

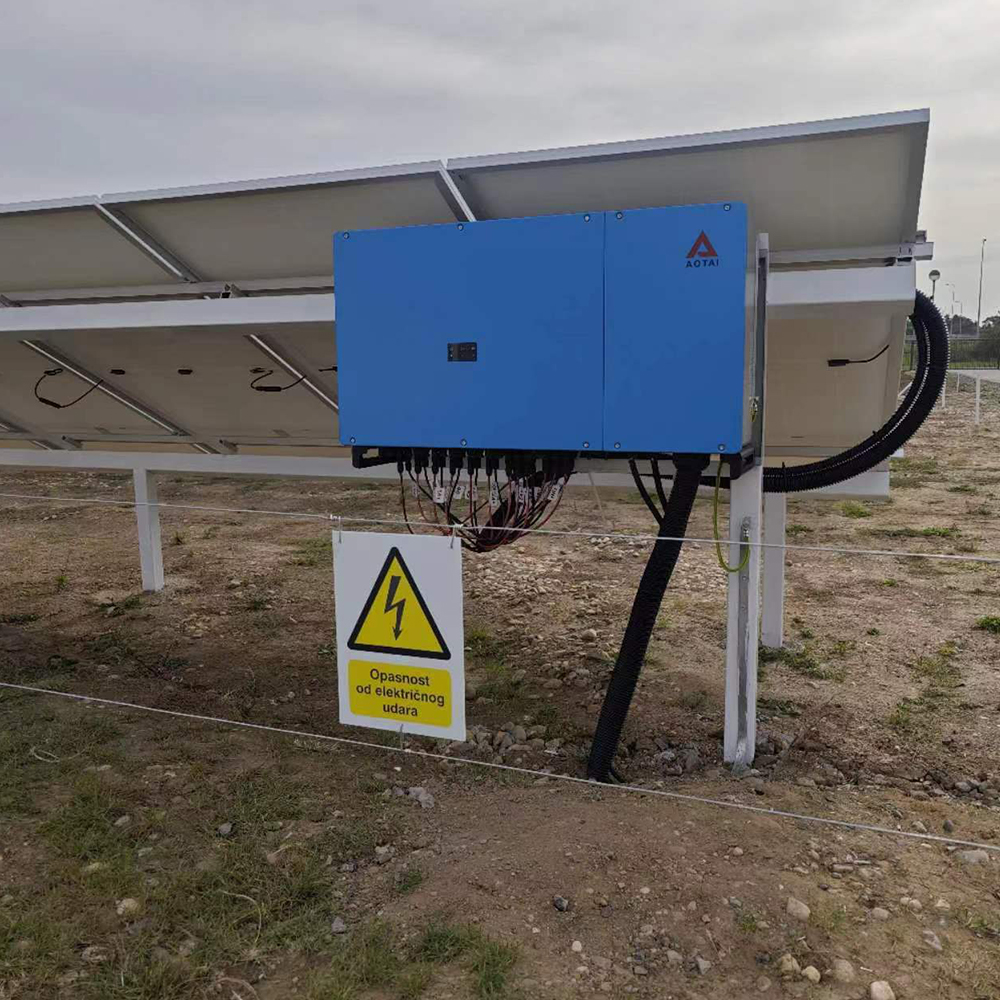

  • Serbia

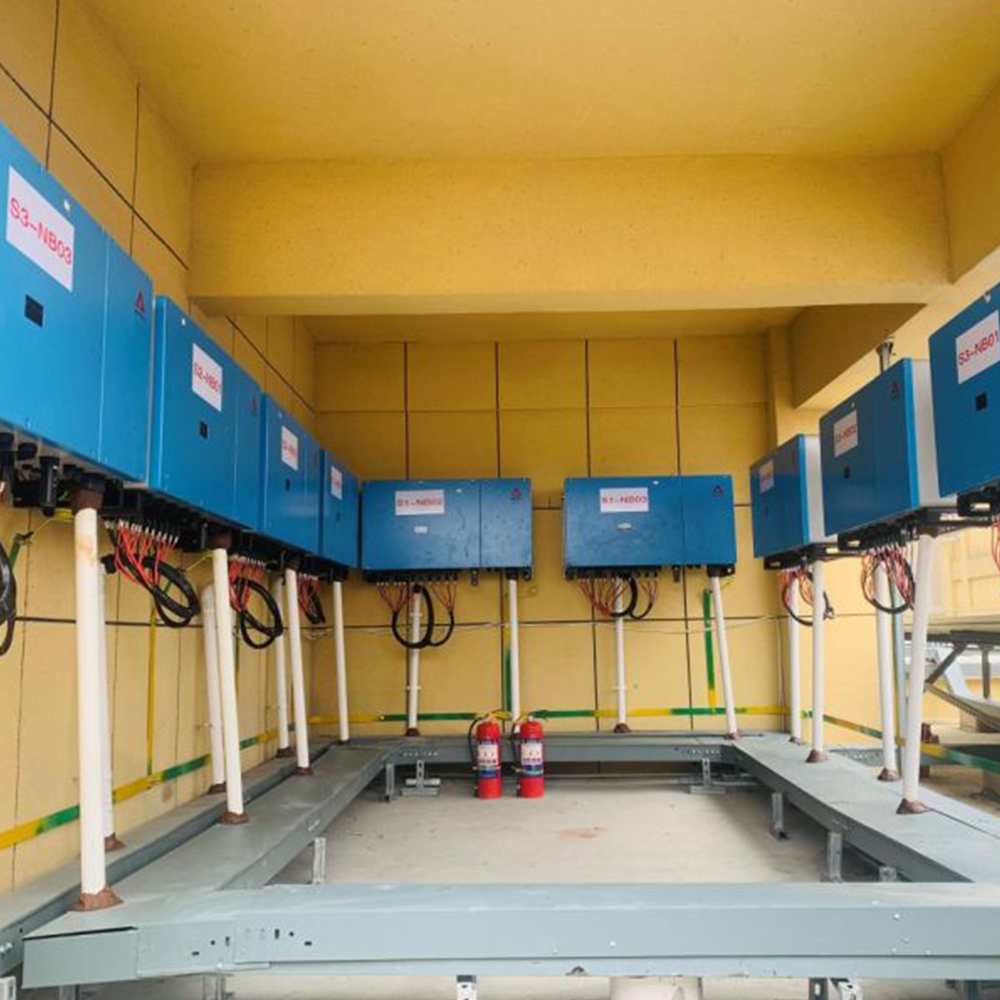

  • china

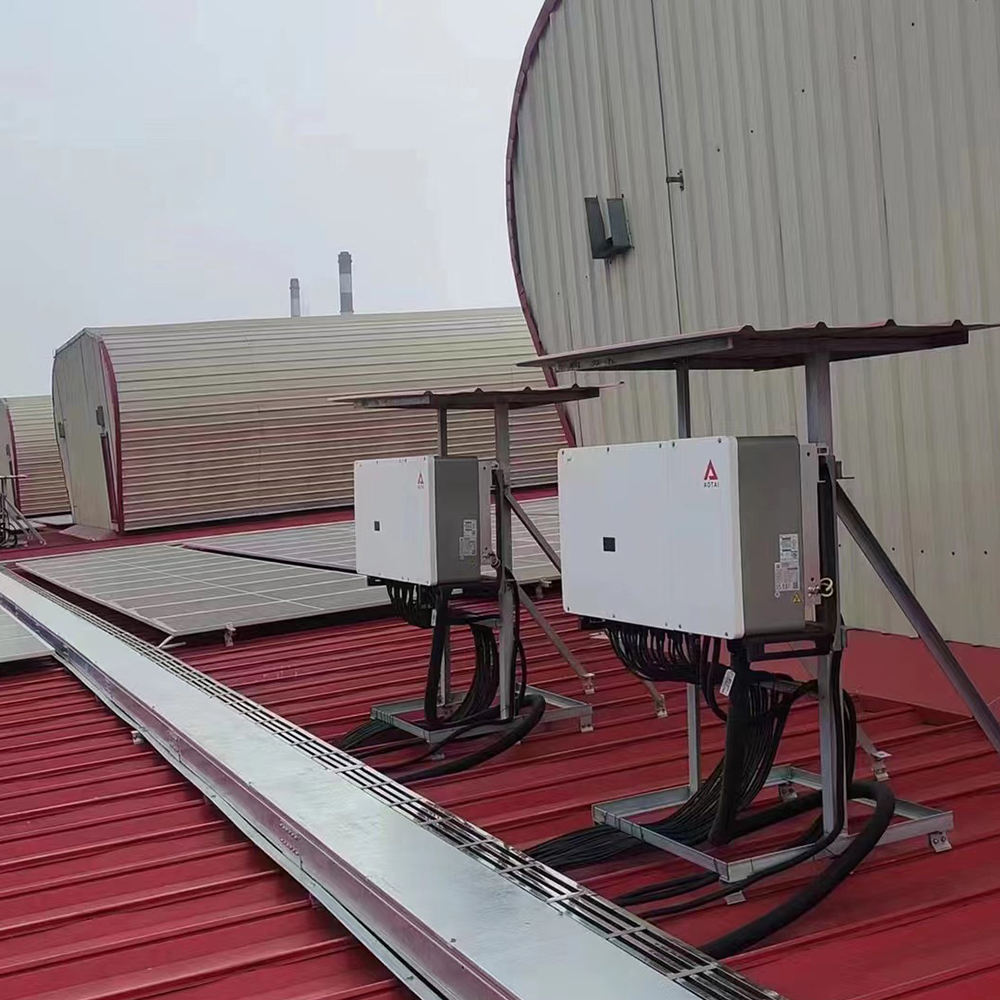

  • china

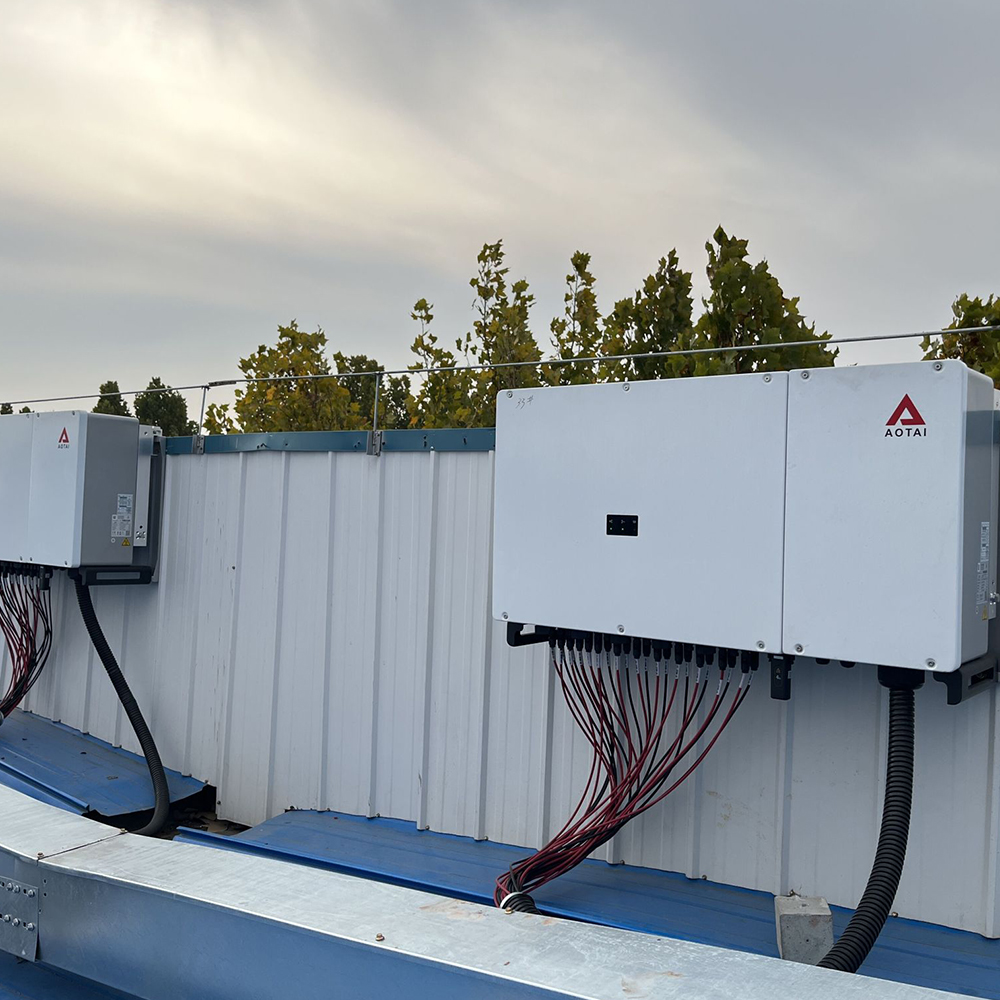

  • china
