ASP-3/4/5/6/8/10KTLD
ASP-3/4/5/6/8/10KTLD

Flexible design  |  Efficient conversion  |  Grid friendly


Flexible design



◆ Small size,light weight,support manual installation,reduce user installation and maintenance cost Multi-communication interface:RS485,GPRS(optional),Wifi(optional)

◆ DC breaker,easy to maintain and safe to use

◆ Convection without fan

◆ Digital DSP control technology


Efficient conversion


◆ Transformerless,max. efficiency is up to 98.1%;Euro.efficiency is up to 97.6%

◆ Total current THD <2%



Grid friendly


◆ Active and passive  anti-islanding protection

◆ Continuously adjustable  active power (0-100%)  function





Excellent qualities



◆ CQC Gold Sun Certification,TUV Certification

◆ SAA Certification,CE Certification


ASP-3/4/5/6/8/10KTLD
ASP-3/4/5/6/8/10KTLD

Model Name3KTLD4KTLD5KTLD6KTLD8KTLD10KTLD
Input
Max.DC input power3900W5200W6500W7200W9200W11500W
Max.DC input voltage550V
Max.DC input current118A18/18A18/18A18/18A20/26A20/30A
MPPT voltage range80-550V
Recommended MPP operating voltage360V
No.of MPPT12
Max.no.of strings per MPPT11/2
Output
Rated output power3000W4000W5000W6000W8000W10000W
Max.output power3.3KVA4.4KVA5.5KVA6.6KVA8.8KVA11KVA
Max.output current15A20A25A27.3A36.4A45.5
Rated grid voltage230V
Grid voltage range160~270Vac(adjustable)
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD<2%(Under the rated power)
Power factor>0.99(Under the rated power)/Adjustable range:0.8 leading~0.8 lagging
DC current injection<0.5%(Under the rated power)
System data
Max.efficiency98%98.1%98.1%98.1%98.1%98.1%
Euro.efficiency97.5%97.5%97.5%97.5%97.5%97.6%
Humidity range0-100%non-condensing
Cooling typeAir coolingIntelligent forced air cooling
Temperature range-25~+60 C
Power consumption at night<1W
Max.working altitude4000m
DisplayLED/LCD/(optional)
Communication interfaceWifi/RS485/GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchOptional
Mechanical data
Dimensions (WxHxD)317*368*167mm347*368*190mm
Weight10kg11Kg
Protection classIP66
Standard
Grid-connected standardNB/T 32004-2018;IEC61727
Safety standardNB/T 32004-2018;IEC 62109-1/2
Electromagnetic compatibilityIEC61000-6-2/4
ASP-3/4/5/6/8/10KTLD
ASP-3/4/5/6/8/10KTLD


Video

Product Features

Aluminum Shell

The aluminum shell is formed by stamping, ensuring excellent waterproof and corrosion resistance performance.







Special Protection For PCB.png

Super Overload Capability

Maximum support over 1.3 times overload, suitable for double- sided PV module.

Two-sided solar panel can generate power on both sides.

Rear side provides 25% more power than rated power.

Double-sided panels increase system power generation and require more redundancy in inverter.

Special Protection For PCB

Aotai 105um thickness
copper layer on PCB printed
board and other top-level
configuration (Usually 75um
in the industry)



Case Study

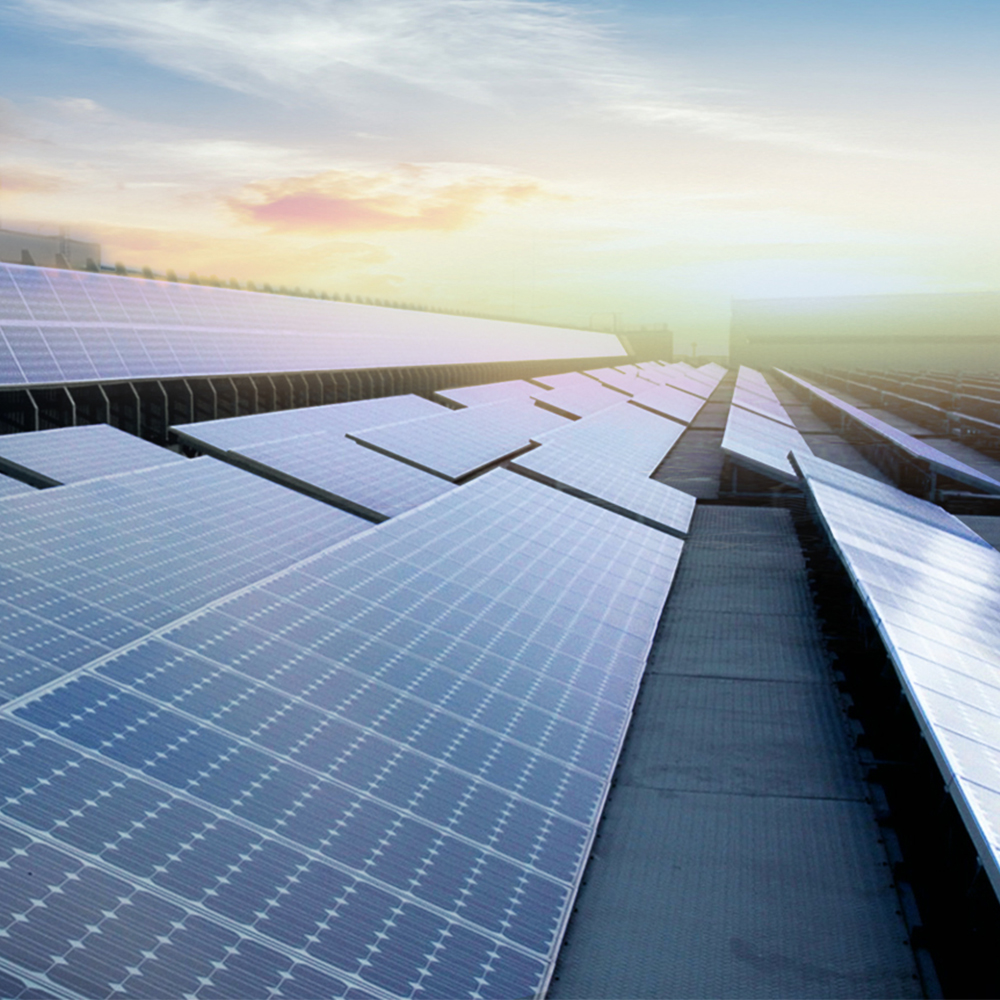

  • Philippines

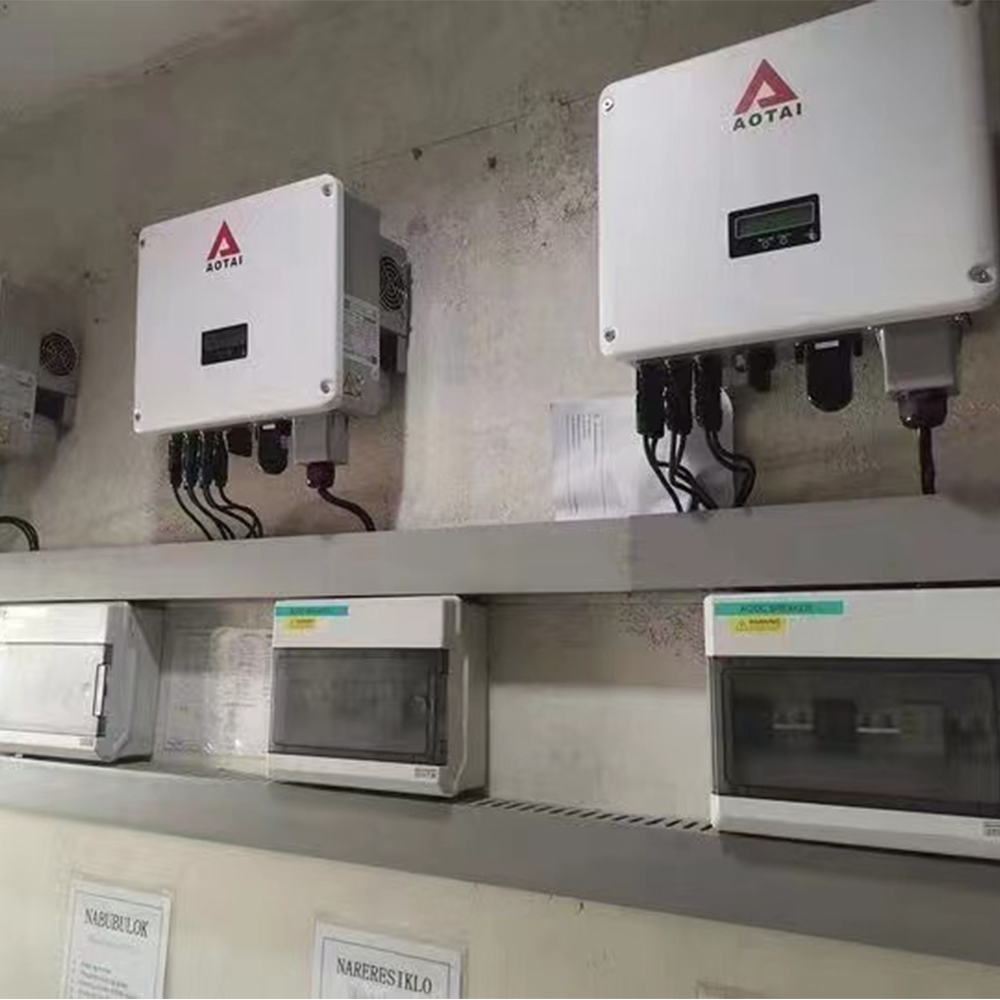

  • Philippines

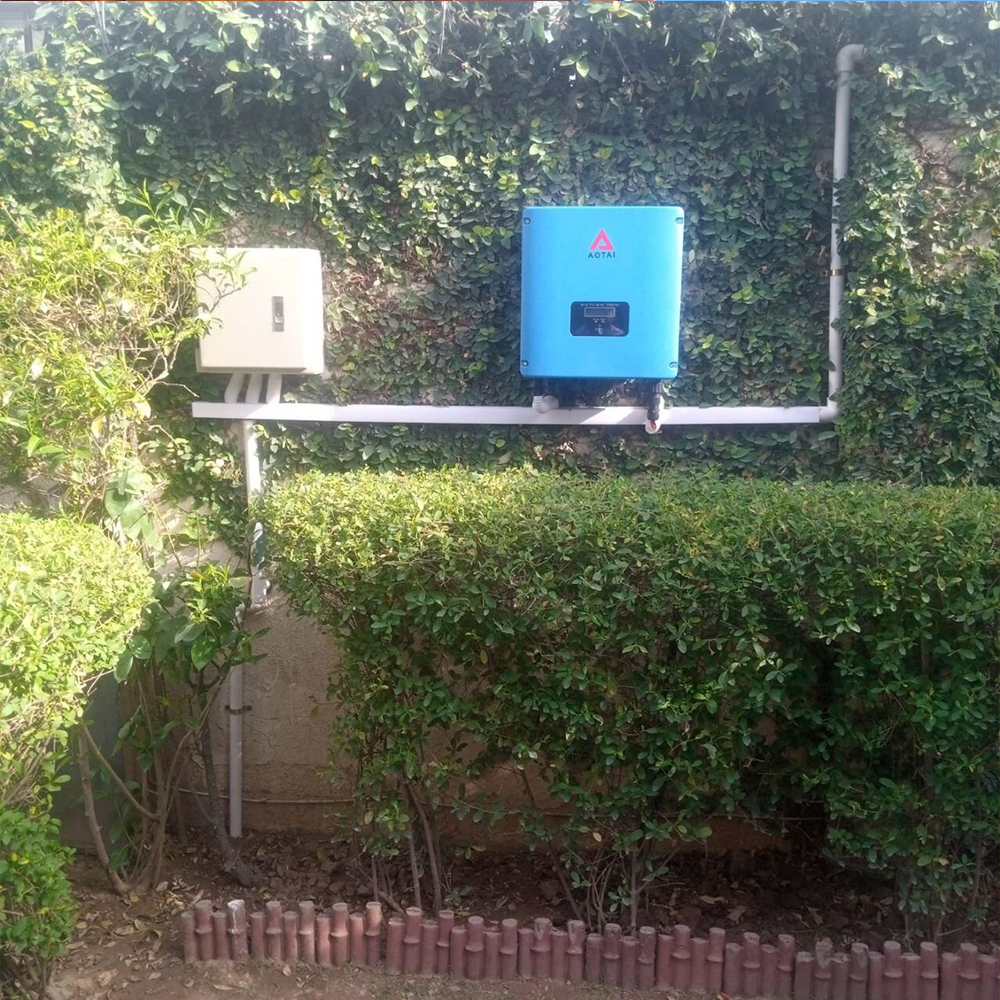

  • Pakistan

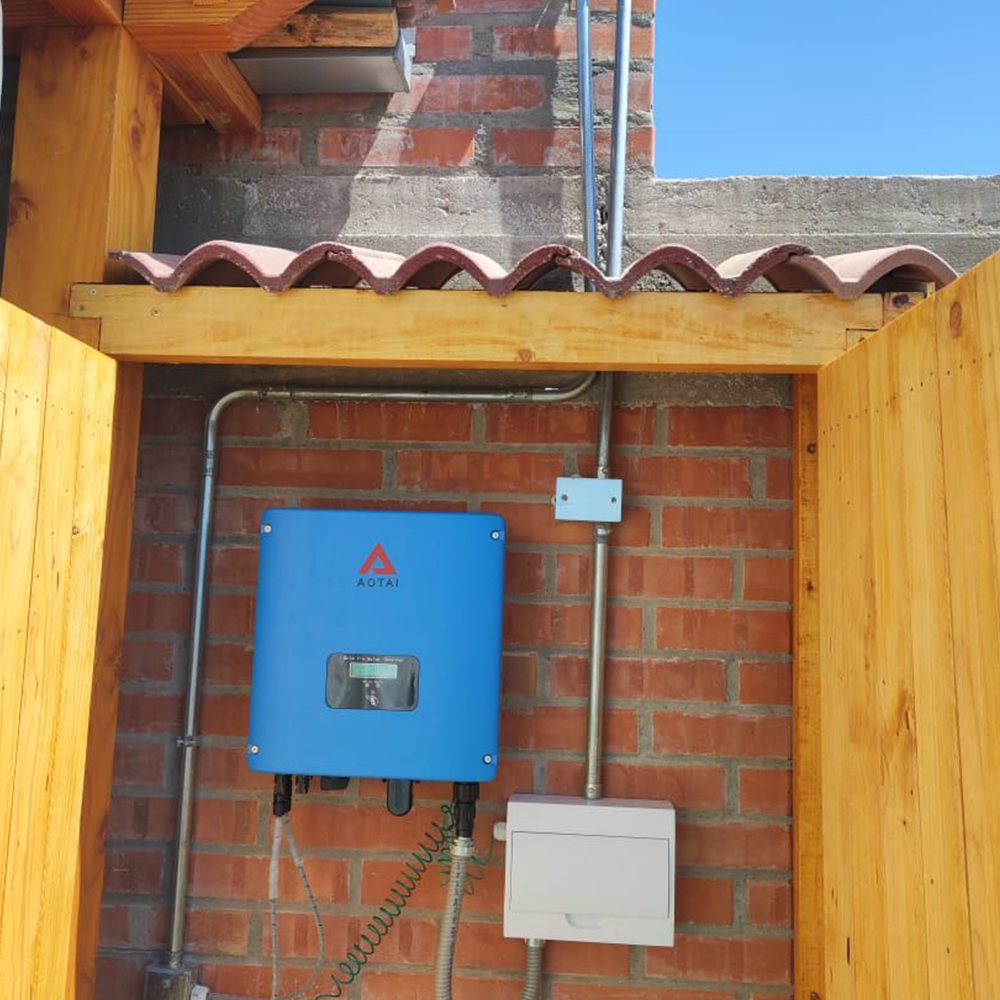

  • Chile
