ASP-196/225K-EHV
Overview
Specs
Download & Support
ASP-196/225K-EHV
ASP-196/225K-EHV

Flexible design  |  Efficient conversion  |  Grid friendly


Flexible design


◆ Multi-communication interface: RS485, GPRS(optional), Wifi(optional) DC breaker, easy to maintain and safe to use

◆ Integrated functions of combiner box& DC lightning protection, reduce system cost for users


Efficient conversion


◆ Transformerless,max. efficiency is up to 98.9%;

◆ Euro. efficiency is up to 98.2%

◆ Total current THD <2%

◆ Three-level SVPWM control technology, increase DC voltage utilization




Grid friendly


◆ LVRT HVRT function

◆ Adjustable reactive power, power factor from 0.8 leading to 0.8 lagging

◆ Active and passive anti-islanding protection

◆ Continuously adjustable active power (0-100%) function





Excellent qualities


◆ CQC Gold Sun Certification, TUV Certification

◆ SAA Certification, CE Certification


ASP-196/225K-EHV
ASP-196/225K-EHV
Model Name 196K-EHV225K-EHV
Input
Max.DC input power294KW337.5KW
Max.DC input voltage1500V
Max.DC input current40A*840A*12
MPPT voltage range500~1500V
Recommended MPP operating voltage1080V
No.of MPPT812
Max.no.of strings per MPPT2
Output
Rated output power196KW225KW
Max.output power216KVA247.5KVA
Max.output current155.9A178.7A
Rated grid voltage800V
Grid voltage range640-920Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD<3%(Under the rated power)
Power factor>0.99(rated power)10.8 leading-0.8 lagging
DC current injection<0.5%(Under the rated power)
System data
Max.efficiency99.01%99.02%
Euro.efficiency98.50%98.51%
Humidity range0-100%non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-30~+60°C
Power consumption at night≤2W
Max.working altitude5000m(>4000 derating
DisplayLED/LCD(optional)
Communication interfaceRS485/Wifi/GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)1008x700x351mm
Weight86Kg                                   96Kg
Protection classIP66
Standard
Grid-connected standardNB/T 32004-2018;IEC61727
Safety standardNB/T 32004-2018;IEC 62109-1/2
Electromagnetic compatibilityIEC61000-6-2/4


ASP-196/225K-EHV
ASP-196/225K-EHV

Video

Product Features

Aluminum Shell

The aluminum shell is formed by stamping, ensuring excellent waterproof and corrosion resistance performance.







Special Protection For PCB.png

Super Overload Capability

Maximum support over 1.3 times overload, suitable for double- sided PV module.

Two-sided solar panel can generate power on both sides.

Rear side provides 25% more power than rated power.

Double-sided panels increase system power generation and require more redundancy in inverter.

Special Protection For PCB

Aotai 105um thickness
copper layer on PCB printed
board and other top-level
configuration (Usually 75um
in the industry)



Case Study

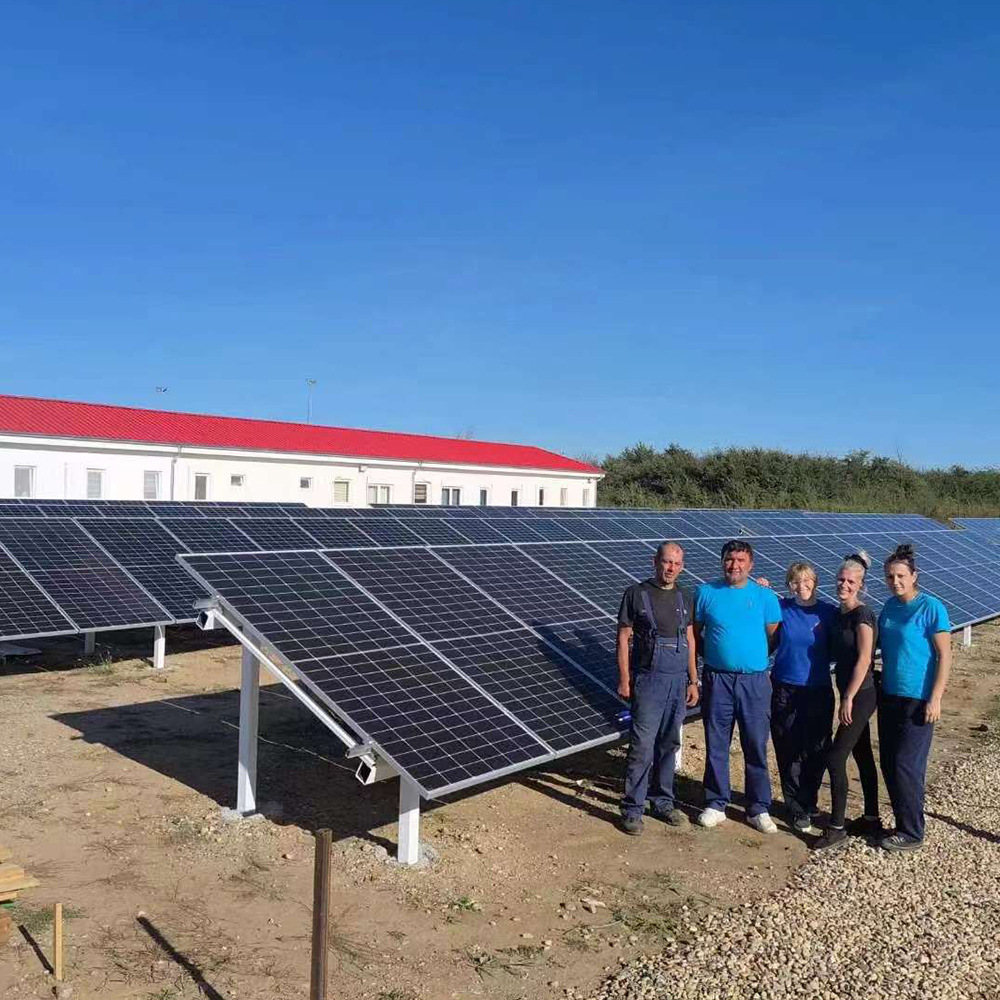

  • Serbia

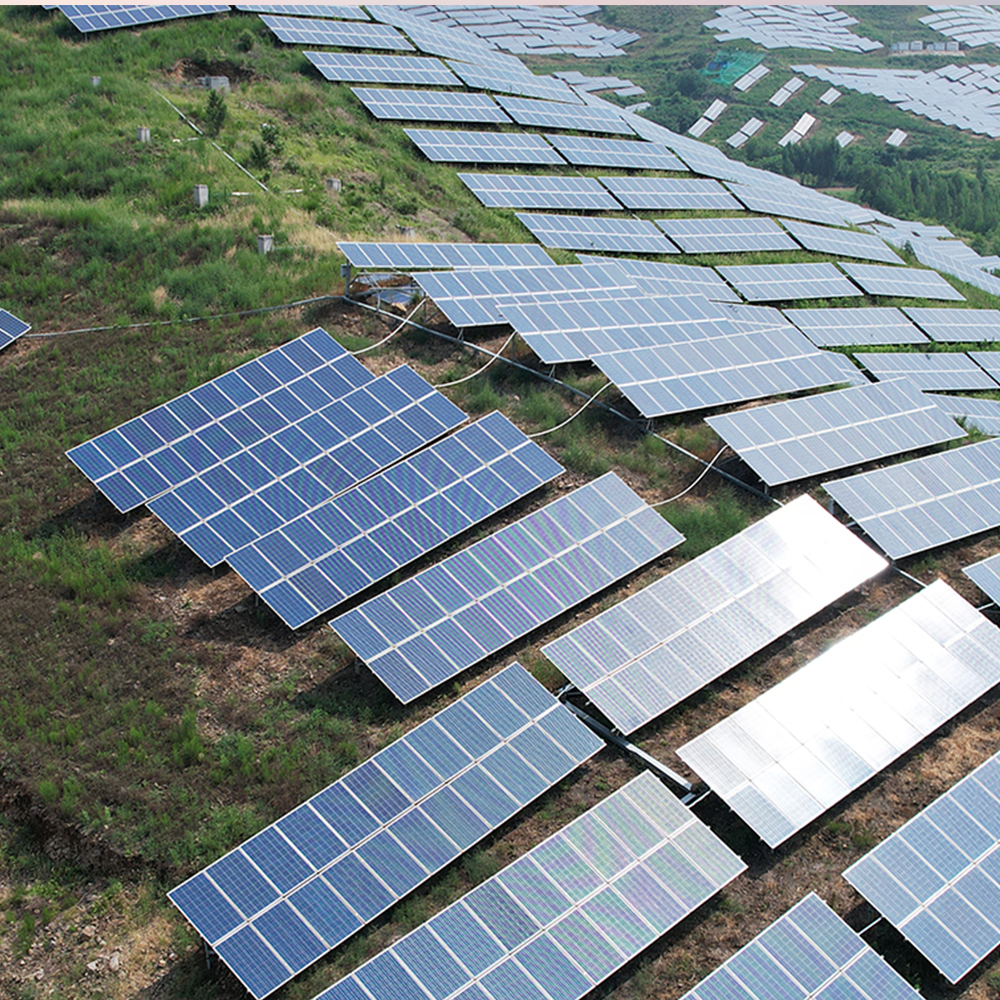

  • Serbia

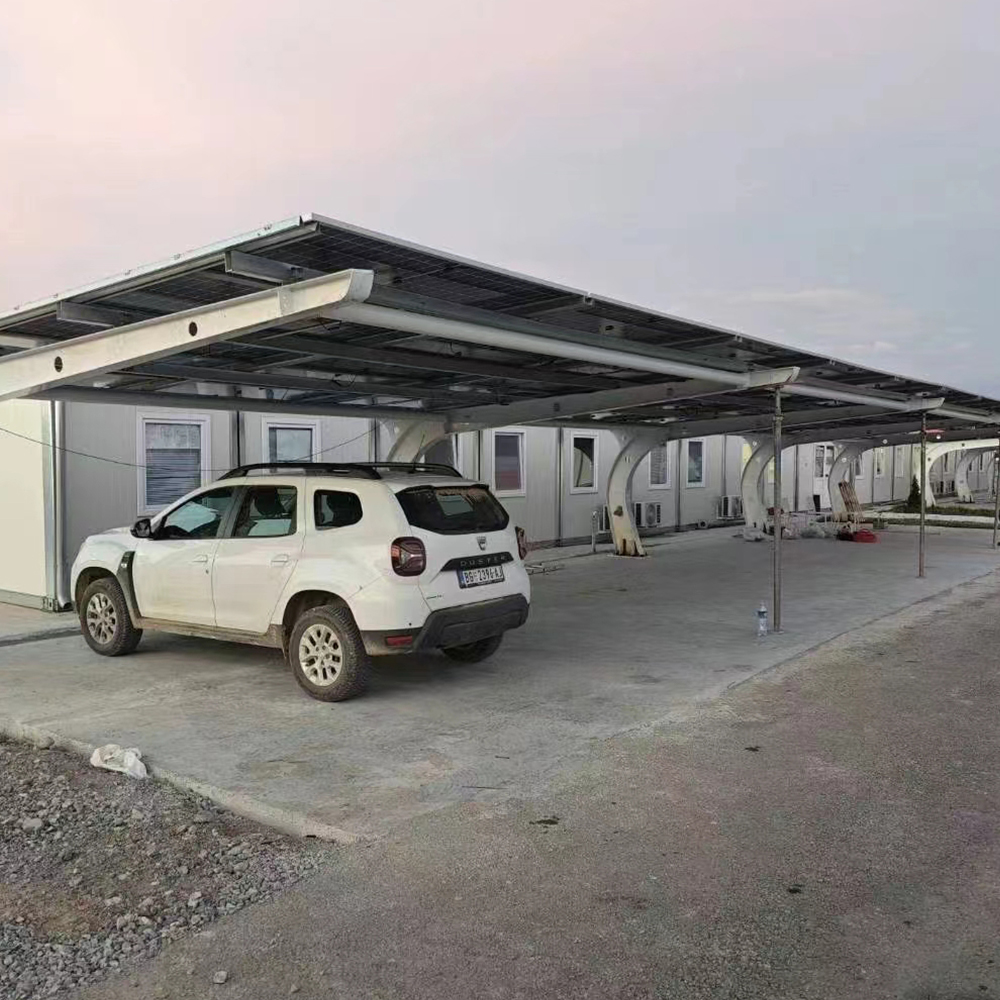

  • Serbia
